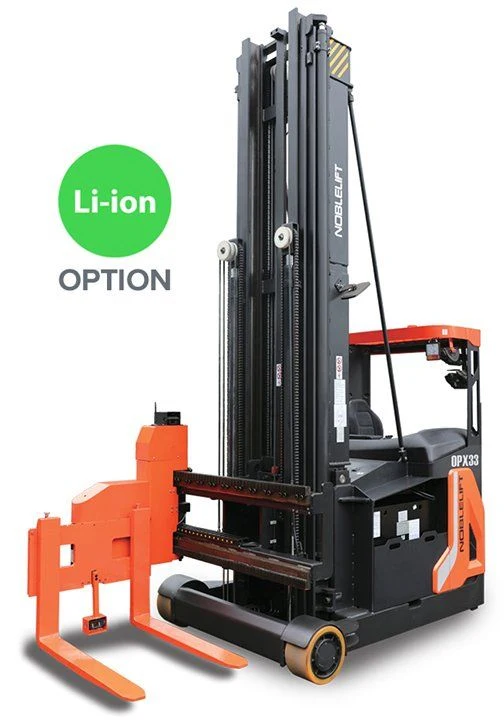

OPX33 Swing Reach Very Narrow Aisle Turret Truck

Item #OPX33 · MFR #OPX33

Quick Answer: The Noblelift OPX33 is a very narrow aisle turret truck rated for 3,300 lb — quote-only, with factory-direct shipping from U.S. stock and a 36-month warranty.

Noblelift OPX33 very narrow aisle turret truck with 3,300 lb capacity.

Brand: Noblelift
Condition: New
Category: Reach Trucks

🚚 Factory-Direct Shipping 🏷️ Volume Pricing Available 🛠️ Expert Support: (847) 278-2311

Sales & expertise backed by Premier Handling Solutions, Inc.

Custom / Volume Pricing

This item is priced per order — request a fast, no-obligation quote.

Model / Configuration

⚙️ Options & Upgrades

Lithium Battery 600Ah + 48V/200Ah Charger Yes - replaces standard battery & charger+ $11,000.00

Fork Length 48" Yes+ $100.00

Fork Length 54" Yes+ $120.00

Fork Length 60" Yes+ $300.00

Preheight Selection System Yes+ $3,200.00

Magnetic Guide Yes+ $7,500.00

Wire Guide Yes+ $8,200.00

Wire Guide with Line Driver Yes+ $10,900.00

Magnetic Strips or Wire (quote/ft) Request - quote/ft, quoted by lengthIncluded

Selected options are included in your quote request — a specialist prices the full configuration.

✓ In Stock — Ships Fast

Sold & shipped factory-direct by Noblelift · fulfilled through MaterialHandling.com

📍 Ships from Elgin, IL

Request a Quote 📞 Call (847) 278-2311

Our specialists respond within one business day with pricing, freight and lead time.

🔒 Secure checkout — cards, ACH & PO accepted
📦 Freight & liftgate options at checkout
↩️ 30-day returns on stock items

Noblelift ✓ Verified factory-direct vendor

🚚 Ships factory-direct from Illinois
★ Made in the USA
🏭 82 products in our catalog
🤝 Fulfilled & supported through MaterialHandling.com

Shop all Noblelift →

Product Details

The Noblelift OPX33 is a very narrow aisle turret truck rated for 3,300 lb. Every unit ships factory-direct from Noblelift's U.S. distribution network and is backed by a 36-month warranty.

Available configurations

Model	Configuration
OPX33-256	256" Lift (3-Stage)
OPX33-295	295" Lift (3-Stage)
OPX33-335	335" Lift (3-Stage)
OPX33-374	374" Lift (3-Stage)
OPX33-394	394" Lift (3-Stage)
OPX33-413	413" Lift (3-Stage)
OPX33-511	511" Lift (3-Stage)

Options & upgrades

Lithium Battery 600Ah + 48V/200Ah Charger
Fork Length 48"
Fork Length 54"
Fork Length 60"
Preheight Selection System
Magnetic Guide
Wire Guide
Wire Guide with Line Driver

Option pricing is confirmed on your quote — tell us your configuration and we’ll spec it out.

Specifications

Item Number	OPX33
Manufacturer Part #	OPX33
Brand	Noblelift
Capacity	3,300 lb
Available Lift Heights	256" / 295" / 335" / 374" / 394" / 413" / 511"
Mast Stages	3
Design Type	Swing Reach Very Narrow Aisle (VNA) Turret Truck
Aisle Width	67" (1.7 m)
Battery (Standard)	48V/900Ah Lead-Acid (side-extracted with tray)
Charger	48V/120A 208-240V or 480V 3-Phase
Drive System	48V Fully AC

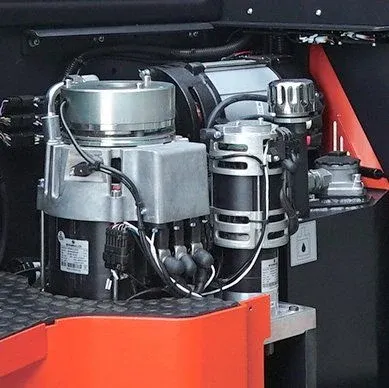

Drive Motor	Schabmueller AC
Gearbox	German ZF GK30
Power Steering	Schabmueller Electric

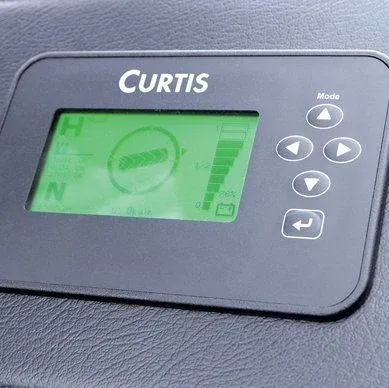

Controller	Curtis Intelligent Computer Control with self-diagnostics
Drive Tire	15.7" x 6" polyurethane
Load Wheels	13" x 7" polyurethane
Travel Speed (unloaded)	5.28 mph
Travel Speed (loaded)	5 mph

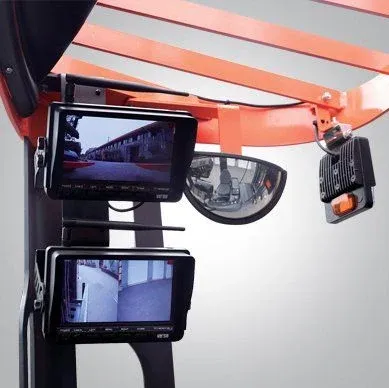

Camera System	Dual screen, three-camera wireless monitoring
Fork Traverse & Rotation	Standard - keeps forks within aisle
Side Roller Guide	Standard
Suspension Seat	Standard
Adjustable Elbow Pad	Standard
Service Weight Range (priced variants)	13,068 - 13,860 lb
Warranty	3-Year Limited (5-Year on Optional Lithium Battery)
