Vestil Fl-Lk-4E Steel Top Mount Floor Lock
Fl-Lk-4E_A
Fl-Lk-4E_B
Fl-Lk-4E_C
Fl-Lk-4E_D
Fl-Lk-4E_E
Fl-Lk-4E_F
Fl-Lk-4E_G
Click to enlarge

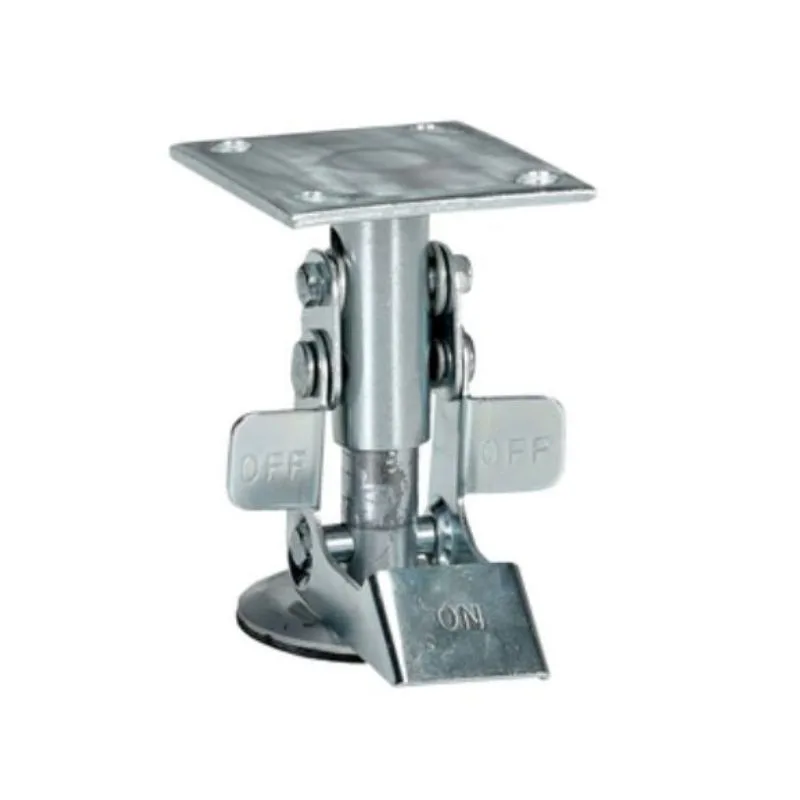

Vestil FL-LK-4E Steel Top Mount Floor Lock
FL-LK-4E_A
FL-LK-4E_B
FL-LK-4E_C
FL-LK-4E_D
FL-LK-4E_E
FL-LK-4E_F
FL-LK-4E_G
Price Match
Vestil

Vestil FL-LK-4E Steel Top Mount Floor Lock

$36.85

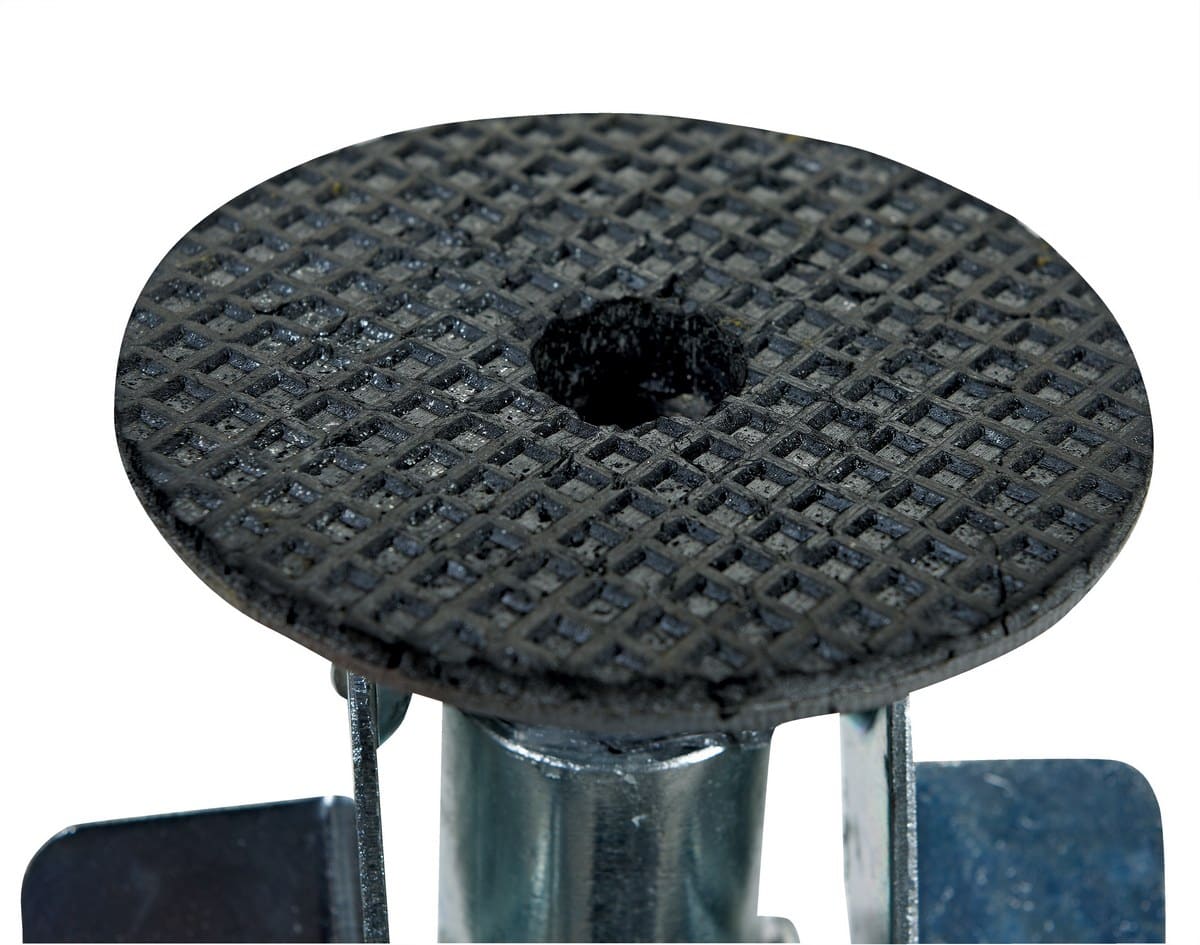

The Vestil FL-LK-4E Steel Top Mount Floor Lock is a versatile solution for keeping platform trucks, fixture dollies, and equipment with casters in place with just the simple pressure of a foot. It locks securely by pressing the large friction face against the floor and can be easily released by kicking the release rod. The brake is not dependent on the casters and can be installed in any convenient location on the cart. The vertical mounting plate is designed to be mounted on the sides of carts and other portable products. The spring-loaded pad is designed to accommodate uneven floors and the unit sits 1 inch off the floor when retracted. Take control of your equipment’s mobility with the Vestil FL-LK-4E Steel Top Mount Floor Lock.

Weight 4 lbs
Dimensions 7 × 5 × 6 in
Mount Height (in.)

5-5/8
Retract Height (in.)

4-7/8
Type

Foot pedal
Mounting Type

Top Plate
Base Plate Width (in.)

3-15/16
Base Plate Length (in.)

4-9/16
Base Plate Mounting Holes

4
Slotted Mounting Hole Width/Height (in.)

7/16 x 3/4
Inside Bolt Hole Spacing (in.)

2-9/16 X 3-1/4
Outside Bolt Hole Spacing (in.)

3 X 3-5/8
Plate Thickness (in.)

1/4
Quick Ship This product is in stock and ready to ship (48 hour quick ship)

Yes
Brand

Vestil

Compare
Add to wishlist
SKU: FL-LK-4E Categories: ,
Vestil Manufacturing
Vestil Manufacturing
Description

The Vestil FL-LK-4E Steel Top Mount Floor Lock is a versatile solution for keeping platform trucks, fixture dollies, and equipment with casters in place with just the simple pressure of a foot. It locks securely by pressing the large friction face against the floor and can be easily released by kicking the release rod. The brake is not dependent on the casters and can be installed in any convenient location on the cart. The vertical mounting plate is designed to be mounted on the sides of carts and other portable products. The spring-loaded pad is designed to accommodate uneven floors and the unit sits 1 inch off the floor when retracted. Take control of your equipment’s mobility with the Vestil FL-LK-4E Steel Top Mount Floor Lock.

  • Lock constricts the movement of a unit
  • Attachable to moving platform carts
  • Simple locking and unlocking function
  • Able to be used on rough surfaces
