$26.87

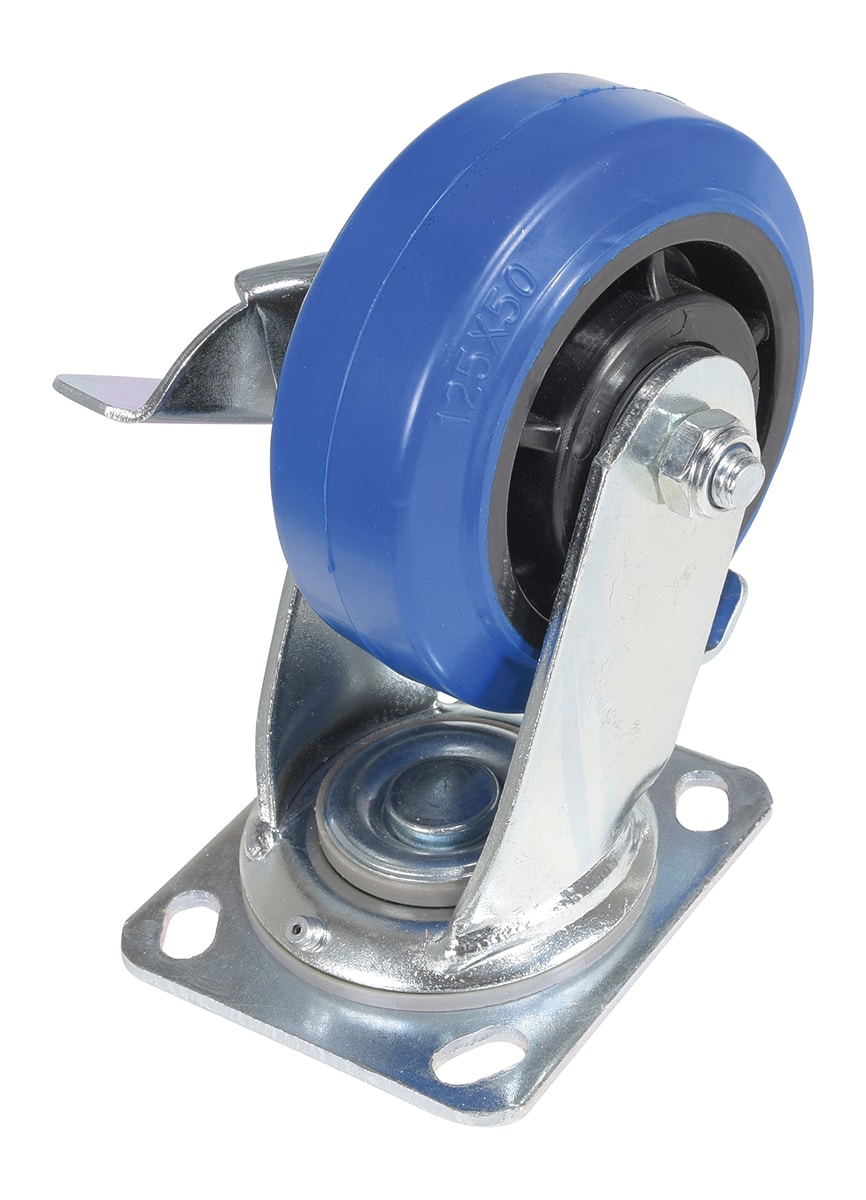

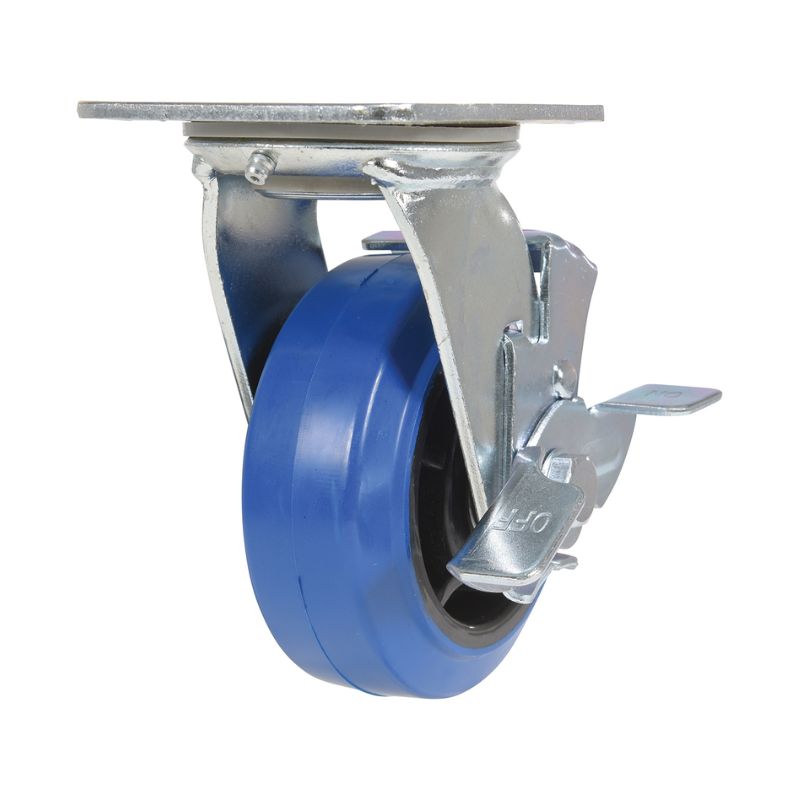

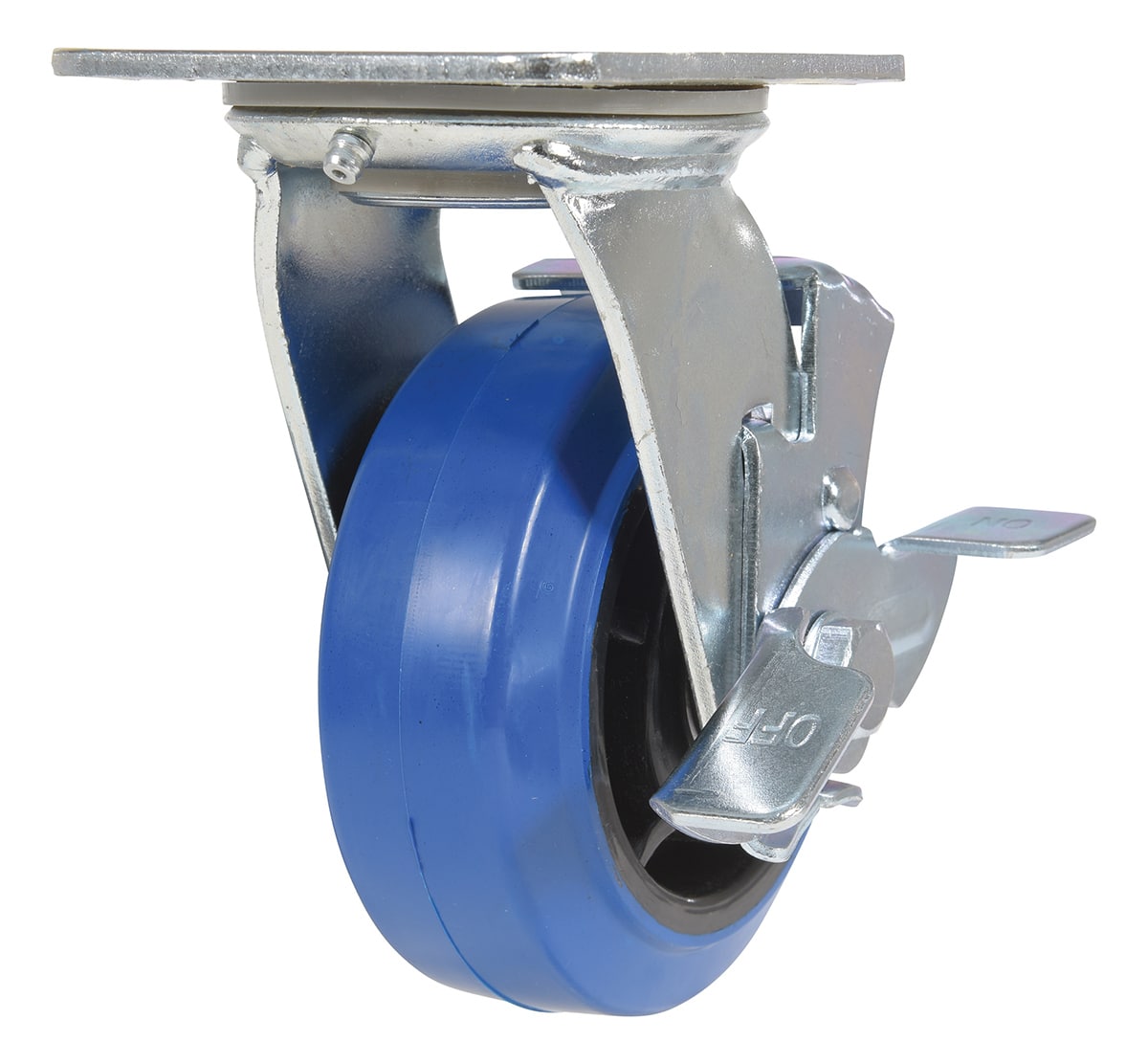

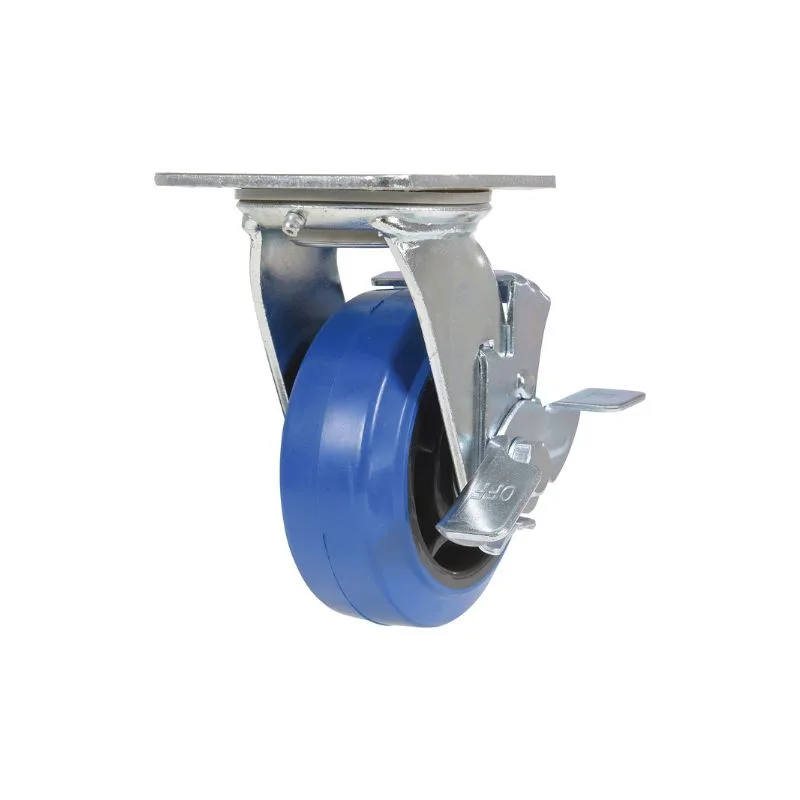

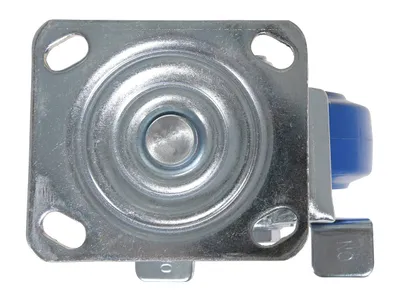

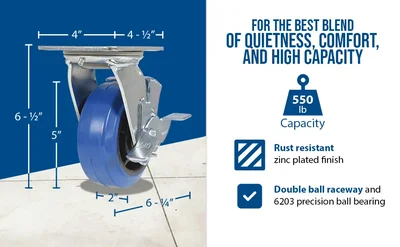

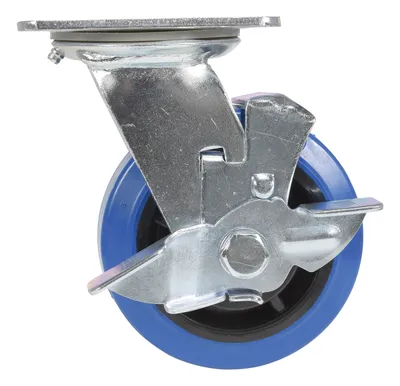

Vestil CST-BB-5X2ER-SWB Elastic Rubber Swivel With Brake Caster offers the smooth quiet operation blue elastic rubber is known for, while providing a higher capacity. This opens the door for usage in more industrial strength operations. For the best blend of quietness, comfort, and high capacity.
| Weight | 6 lbs |
|---|---|
| Dimensions | 6 × 8 × 8 in |
| Caster Size |
5 x 2 |
| Capacity |
550 |
| Finish |
Zinc Plated |
| Durometer |
70 (+/-3) SHORE A |
| Diameter (in.) |
5 |
| Offset (Swivel Lead) |
1-1/2 |
| Raceway Type |
Double Ball |
| Zerk Fitting |
Raceway |
| Double Welded Forks |
Outside |
| Quick Ship This product is in stock and ready to ship (48 hour quick ship) |
Yes |
| Brand |
Vestil |
Vestil CST-BB-5X2ER-SWB Elastic Rubber Swivel With Brake Caster offers the smooth quiet operation blue elastic rubber is known for, while providing a higher capacity. This opens the door for usage in more industrial strength operations. For the best blend of quietness, comfort, and high capacity.
Shipping Policy
We offer 48 hour quick ship on designated products. These products are labeled Quick Ship. All other products for Vestil brand may take 1 to 2 weeks. Please contact Material Handling at 855-719-1415 to get estimated shipping times for these products.
Vestil Manufacturing Corporation is an industry leader in the production and distribution of material handling equipment. Vestil features over 1,000 different product lines, many of which are in stock and ready for immediate shipment.
Leading the way in Material Handling Equipment!
Do you have questions about our products? Send us an email and we’ll get in touch shortly.
In stock
| Weight | 1931 lbs |
|---|---|
| Dimensions | 99 × 40 × 83 in |
| Uniform Capacity (lb.) at 0-62 (in.) |
1,000 |
| Fork Width Minimum/Maximum (in.) |
6-3/8 to 23-5/8 |
| Fork Length (in.) |
30 |
| Lowered Height (in.) |
2 |
| Raised Height (in.) |
62 |
| Drive Motor |
24V |
| Lift Motor |
24V |
| Drive (KW) |
0.7 |
| Lift Motor (KW) |
2 |
| Operation at Full Charge (hrs.) |
3-4 |
| Operation at Full Charge when Used Intermittently (hrs.) |
8 |
| Individual Fork Width (in.) |
3-1/8 |
| Number of Batteries Used |
2 |
| Brand |
Vestil |
In stock
| Weight | 954 lbs |
|---|---|
| Dimensions | 85 × 42 × 57 in |
| Uniform Capacity (lb.) |
4500 |
| Overall Fork Width (in.) |
27 |
| Overall Fork Length (in.) |
48 |
| Lowered Height (in.) |
3-3/4 |
| Raised Height (in.) |
8 |
| Battery Type |
(4) 6 Volt |
| DC Motor Voltage |
24 |
| Battery Charger |
120V Input, 24V/20 amp |
| Turn Radius (in.) |
78-3/8 |
| Drive KW |
1.2 |
| Lift Motor KW |
2.0 |
| Operation at Full Charge (hours) |
6 to 7 |
| Operation When Used Intermittently (hours) |
8 |
| Drive Wheel Diameter (in.) |
10 |
| Drive Wheel Width (in) |
3-1/8 |
| Load Roller Diameter (in.) |
2-3/4 |
| Load Roller Width (in.) |
3 |
| Stabilizing Roller Diameter (in.) |
1-1/2 |
| Stabilizing Roller Width (in.) |
3 |
| Wheel & Roller Type |
Poly on Steel |
| Individual Fork Width (in.) |
6-7/8 |
| Rider Platform Length (in.) |
12 |
| Rider Platform Width (in.) |
18 |
| Brand |
Vestil |
In stock
| Weight | 445 lbs |
|---|---|
| Dimensions | 45.875 × 43.25 × 67.3125 in |
| Uniform Capacity (lb.) |
400 |
| Fork Length (in.) |
22-7/16 |
| Fork Width (in.) |
4 |
| Fork Height (in.) |
1-3/4 |
| Raised Height with Forks Up (in.) |
120 |
| Raised Height with Forks Down (in.) |
98-7/16 |
| Lowered Height with Forks Down (in.) |
2 / 21-1/4 |
| Front Wheel Diameter (in.) |
4 |
| Rear Wheel Diameter (in.) |
5 |
| Front Wheel Width (in.) |
2 |
| Rear Wheel Width (in.) |
2 |
| Fork Outside Diameter (in.) |
20-7/8 |
| Inside Straddle Width (in.) |
21-1/2 – 36-1/2 |
| Outside Straddle Width (in.) |
28-1/4 – 43-1/4 |
| Fork Raise per Hand Crank Rotation (in.) |
1 |
| Wheel Material |
Poly-On-Poly |
| Quick Ship This product is in stock and ready to ship (48 hour quick ship) |
Yes |
| Brand |
Vestil |
In stock
| Weight | 5 lbs |
|---|---|
| Dimensions | 5 × 10 × 7 in |
| Brand |
Vestil |
| Quick Ship This product is in stock and ready to ship (48 hour quick ship) |
Yes |
| Caster Size |
4 x 2 |
| Durometer |
65 SHORE A |
| Raceway Type |
Double Ball |
| Capacity |
450 |
| Diameter |
4 |
| Zerk Fitting |
AXLE & RACEWAY |
| Finish |
Zinc Plated |
| Offset (Swivel Lead) |
1-1/2 |
| Double Welded Forks |
No |
| Bulldog |
Y |
In stock
| Weight | 88 lbs |
|---|---|
| Dimensions | 64 × 40 × 13 in |
| Uniform Static Capacity (lb.) |
3,600 |
| Deck Width (in.) |
24 |
| Deck Length (in.) |
60 |
| Deck Height (in.) |
10-1/4 |
| Caster Diameter (in.) |
6 |
| Caster Width (in.) |
1-5/8 |
| Rigid Caster (qty.) |
2 |
| Swivel Caster (qty.) |
2 |
| Caster Material |
Poly-on-Poly |
| Quick Ship This product is in stock and ready to ship (48 hour quick ship) |
Yes |
| Brand |
Vestil |
In stock
| Weight | 58 lbs |
|---|---|
| Dimensions | 30 × 21 × 17 in |
| Uniform Capacity (lb.) |
550 |
| Capacity Top Shelf (lb.) |
175 |
| Capacity Middle/Bottom Shelf (lb.) |
187 |
| Top Deck Length (in.) |
26-3/8 |
| Top Deck Width (in.) |
17-1/8 |
| Top Deck Lip Height (in.) |
1 |
| Drawer Length (in.) |
14-5/8 |
| Drawer Width (in.) |
22-7/8 |
| Drawer Usable Height (in.) |
2-5/8 |
| Opening Locking Compartment Width (in.) |
24-1/8 |
| Opening Locking Compartment Height (in.) |
15-1/2 |
| Caster (quantity) |
4 |
| Caster Diameter (in.) |
4 |
| Caster Width (in.) |
1.25 |
| Caster Material |
Thermoplastic Rubber |
| Caster Type |
(4) Swivel (2 with brakes) |
| Quick Ship This product is in stock and ready to ship (48 hour quick ship) |
Yes |
| Brand |
Vestil |
In stock
| Weight | 310 lbs |
|---|---|
| Dimensions | 64 × 40 × 22 in |
| Uniform Capacity (lb.) |
2200 |
| Overall Fork Width (in.) |
27 |
| Overall Fork Length (in.) |
44 |
| Lowered Height (in.) |
1-1/2 |
| Raised Height (in.) |
3-3/8 |
| Individual Fork Width (in.) |
6-1/2 |
| Steer Caster Material |
Poly-On-Steel |
| Steer Caster Diameter (in.) |
6 |
| Steer Caster Width (in.) |
2 |
| Load Roller Material |
Steel |
| Load Roller Diameter (in.) |
1-1/2 |
| Load Roller Width (in.) |
2-1/4 |
| Steering Arc of Handle Rotation (Degree) |
205 |
| Quick Ship This product is in stock and ready to ship (48 hour quick ship) |
Yes |
| Brand |
Vestil |
In stock
| Weight | 1100 lbs |
|---|---|
| Dimensions | 88 × 28 × 28 in |
| Uniform Capacity (lb.) |
5500 |
| Overall Fork Width (in.) |
27 |
| Overall Fork Length (in.) |
48 |
| Lowered Height (in.) |
2-7/8 |
| Raised Height (in.) |
7-3/4 |
| Individual Fork Width (in.) |
7 |
| Steer Caster Material |
Poly-On-Steel |
| Steer Caster Diameter (in.) |
6-3/4 |
| Steer Caster Width (in.) |
2 |
| Load Roller Material |
Polyurethane |
| Load Roller Diameter (in.) |
2-7/8 |
| Load Roller Width (in.) |
2-1/2 |
| Quick Ship This product is in stock and ready to ship (48 hour quick ship) |
Yes |
| Brand |
Vestil |
