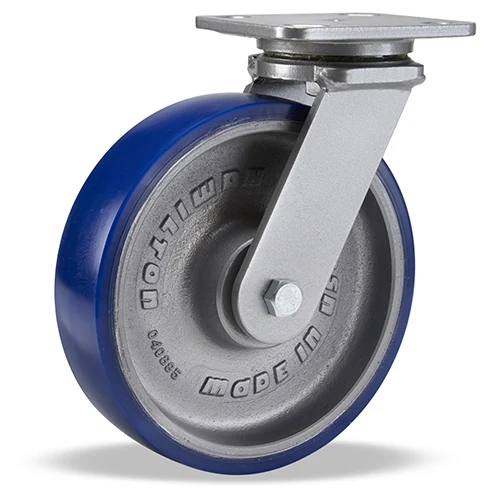

Hamilton S-WH-8SPB Workhorse Swivel Caster, 8" x 2" Polyurethane

Hamilton Caster Item #S-WH-8SPB · MFR #S-WH-8SPB
Quick Answer: The Hamilton S-WH-8SPB is a swivel Workhorse series caster with a 8" x 2" Ergo-Glide Polyurethane wheel rated 1,200 lb, priced at $149.63. Made in USA with a 3-year warranty; ships in 24–48 hours from the factory.
  • Hamilton Workhorse swivel caster with 8" x 2" Ergo-Glide Polyurethane wheel, precision sealed ball, 1,200 lb capacity.
  • Made in USA, 3-year warranty.
Condition
New
🚚 Factory-Direct Shipping 🏷️ Volume Pricing Available 🛠️ Expert Support: (847) 278-2311 Sales & expertise backed by Premier Handling Solutions, Inc.

Product Details

The Hamilton S-WH-8SPB is a swivel top-plate caster from the forged-steel Workhorse series — Hamilton’s mid-capacity industrial workhorse for carts, platform trucks, and racks. It runs a 8" x 2" Ergo-Glide Polyurethane wheel on precision sealed ball bearings and carries a dynamic rating of 1,200 lb per caster. Made in the USA by Hamilton Caster, backed by a 3-year manufacturer warranty, and it typically ships in 24–48 hours from the factory.

Key features

  • 1,200 lb dynamic capacity per caster (at walking speed)
  • 8" x 2" Ergo-Glide Polyurethane wheel — precision sealed ball
  • Kingpin swivel section for full maneuverability
  • Forged/heavy-gauge steel rig, Platinum Powder finish
  • 4 x 5" top plate, bolt pattern 2 5/8 x 3 5/8"
  • 9.5" overall height
  • Field-replaceable wheel (replacement part W-820-SPB-1/2)
  • Made in USA — 3-year Hamilton manufacturer warranty

Options & add-ons

  • Four-Position Swivel Lock
  • Ergo Four-Position Swivel Lock
  • Ergonomic Contact Brake
  • Side Foot Brake
  • ToeGuard
  • ToeGuard w/ Brush
  • ToeGuard w/ Ergo Contact Brake
  • ToeGuard w/ Ergo Brake & Brush
  • ToeGuard w/ Contact Brake
  • ToeGuard w/ Contact Brake & Brush
  • Rap-A-Round Foot Brake
  • Heavy Duty Contact Brake

Brakes, toe guards, and other add-ons are quoted with your order — tell us your configuration and we’ll spec it out.

Specifications

Item NumberS-WH-8SPB
Manufacturer Part #S-WH-8SPB
BrandHamilton Caster
Load Capacity (lbs.) @ 3 mph1200
Wheel Diameter (in.)8
Wheel Face (in.)2
Overall Height (in.)9.5
Swivel Offset (in.)2.375
Mounting Plate (in.)4 x 5
Bolt Hole 1 (in.)2 5/8 x 3 5/8
Bolt Hole 2 (in.)3 x 3
Mounting Bolt (in.)0.375
Caster Color/FinishPlatinum Powder
Wheel TypeErgo-Glide
Wheel Color/FinishBlue Poly on Gray Center
Bearing TypePrecision Sealed Ball
Wheel Material @ TreadPolyurethane
Shipping Weight (lbs.)18
Caster Rig TypeIntegral Forged Kingpin
Wheel Core MaterialCast Iron
High Temp. Range (F)160°F
Low Temp. Range (F)-5°F
Relative CapacityMedium
Impact ResistanceHigh
Abrasion ResistanceHigh
Chemical ResistantMedium
Moisture ResistanceMedium
Cushioning (Resilience)High
Relative CostMedium
Replacement WheelW-820-SPB-1/2
Country of OriginUSA
Warranty3 Years (manufacturer)
Swivel or RigidSwivel
