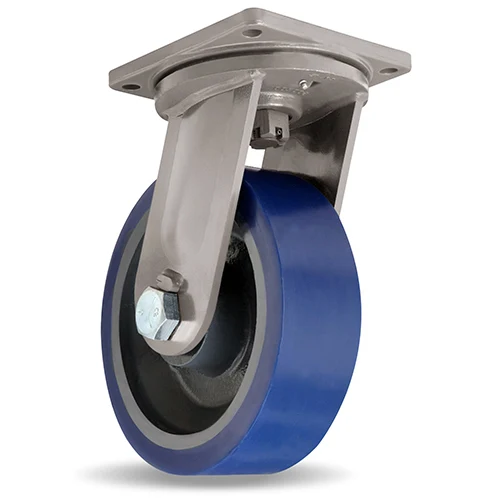

Hamilton S-MD-124SYT Maxi-Duty Swivel Caster, 12" x 4" Polyurethane

Hamilton Caster Item #S-MD-124SYT · MFR #S-MD-124SYT
Quick Answer: The Hamilton S-MD-124SYT is a swivel Maxi-Duty series caster with a 12" x 4" Superlast® Polyurethane wheel rated 6,000 lb, priced at $799.93. Made in USA with a 3-year warranty; ships in 24–48 hours from the factory.
  • Hamilton Maxi-Duty swivel caster with 12" x 4" Superlast® Polyurethane wheel, tapered roller, 6,000 lb capacity.
  • Made in USA, 3-year warranty.
Condition
New
🚚 Factory-Direct Shipping 🏷️ Volume Pricing Available 🛠️ Expert Support: (847) 278-2311 Sales & expertise backed by Premier Handling Solutions, Inc.

Product Details

The Hamilton S-MD-124SYT is a swivel top-plate caster from the Maxi-Duty series — forged from solid steel for the highest plate-caster capacities Hamilton builds. It runs a 12" x 4" Superlast® Polyurethane wheel on tapered roller bearings and carries a dynamic rating of 6,000 lb per caster. Made in the USA by Hamilton Caster, backed by a 3-year manufacturer warranty, and it typically ships in 24–48 hours from the factory.

Key features

  • 6,000 lb dynamic capacity per caster (at walking speed)
  • 12" x 4" Superlast® Polyurethane wheel — tapered roller
  • Kingpin swivel section for full maneuverability
  • Forged/heavy-gauge steel rig, Platinum Powder finish
  • 8 1/2 x 8 1/2" top plate, bolt pattern 7 x 7"
  • 15.5" overall height
  • Field-replaceable wheel (replacement part W-1240-SYT-1-1/4)
  • Made in USA — 3-year Hamilton manufacturer warranty

Options & add-ons

  • Four-Position Swivel Lock
  • CRS Wheel Bearing Seals
  • Ergo Four-Position Swivel Lock
  • Heavy Duty Contact Brake
  • Swivel Seals

Brakes, toe guards, and other add-ons are quoted with your order — tell us your configuration and we’ll spec it out.

Specifications

Item NumberS-MD-124SYT
Manufacturer Part #S-MD-124SYT
BrandHamilton Caster
Swivel or Rigid casterSwivel
Load Capacity (lbs.) @ 3 mph6000
Wheel Diameter (in.)12
Wheel Face (in.)4
Overall Height (in.)15.5
Swivel Offset (in.)3.25
Mounting Plate (in.)8 1/2 x 8 1/2
Mounting Bolt (in.)0.625
Caster Color/FinishPlatinum Powder
Wheel TypeSuperlast®
Wheel Color/FinishBlue Poly on Gray Center
Bearing TypeTapered Roller
Wheel Material @ TreadPolyurethane
Shipping Weight (lbs.)103
Bolt Holes (in.)7 x 7
Caster Rig TypeIntegral Forged Kingpin
NoteThe four-position swivel lock (-4SL) and swivel seals (-SS) cannot be ordered together on this specific caster.
Tread Thickness (in.)1
High Temp. Range (F)160°F
Low Temp. Range (F)-5°F
Relative CapacityHigh
Impact ResistanceVery High
Abrasion ResistanceHigh
Chemical ResistantMedium
Moisture ResistanceMedium
Cushioning (Resilience)Medium
Relative CostHigh
Replacement WheelW-1240-SYT-1-1/4
Country of OriginUSA
Warranty3 Years (manufacturer)
Swivel or RigidSwivel
