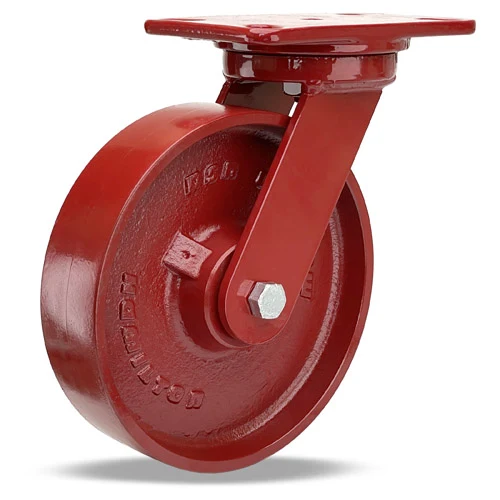

Hamilton S-HS-8MB Heavy Service Swivel Caster, 8" x 2" Metal

Hamilton Caster Item #S-HS-8MB · MFR #S-HS-8MB
Quick Answer: The Hamilton S-HS-8MB is a swivel Heavy Service series caster with a 8" x 2" Metal wheel rated 2,000 lb, priced at $121.90. Made in USA with a 3-year warranty; ships in 24–48 hours from the factory.
  • Hamilton Heavy Service swivel caster with 8" x 2" Metal wheel, precision sealed ball, 2,000 lb capacity.
  • Made in USA, 3-year warranty.
Condition
New
🚚 Factory-Direct Shipping 🏷️ Volume Pricing Available 🛠️ Expert Support: (847) 278-2311 Sales & expertise backed by Premier Handling Solutions, Inc.

Product Details

The Hamilton S-HS-8MB is a swivel top-plate caster from the forged-steel Heavy Service series — built for punishing daily duty cycles on carts, racks, and dollies. It runs a 8" x 2" Metal wheel on precision sealed ball bearings and carries a dynamic rating of 2,000 lb per caster. Made in the USA by Hamilton Caster, backed by a 3-year manufacturer warranty, and it typically ships in 24–48 hours from the factory.

Key features

  • 2,000 lb dynamic capacity per caster (at walking speed)
  • 8" x 2" Metal wheel — precision sealed ball
  • Kingpin swivel section for full maneuverability
  • Forged/heavy-gauge steel rig, Crimson Powder finish
  • 4 1/2 x 6 1/2" top plate, bolt pattern 2 7/16 x 4 15/16"
  • 9.75" overall height
  • Field-replaceable wheel (replacement part W-820-MB-1/2)
  • Made in USA — 3-year Hamilton manufacturer warranty

Options & add-ons

  • Four-Position Swivel Lock
  • Ergo Four-Position Swivel Lock
  • Ergonomic Contact Brake
  • Side Foot Brake
  • ToeGuard
  • ToeGuard w/ Brush
  • ToeGuard w/ Ergo Contact Brake
  • ToeGuard w/ Ergo Brake & Brush
  • ToeGuard w/ Contact Brake
  • ToeGuard w/ Contact Brake & Brush
  • Rap-A-Round Foot Brake
  • Toeguard for Swivel Caster
  • Heavy Duty Contact Brake

Brakes, toe guards, and other add-ons are quoted with your order — tell us your configuration and we’ll spec it out.

Specifications

Item NumberS-HS-8MB
Manufacturer Part #S-HS-8MB
BrandHamilton Caster
Swivel or Rigid casterSwivel
Load Capacity (lbs.) @ 3 mph2000
Wheel Diameter (in.)8
Wheel Face (in.)2
Overall Height (in.)9.75
Swivel Offset (in.)2.75
Mounting Plate (in.)4 1/2 x 6 1/2
Mounting Bolt (in.)0.5
Caster Color/FinishCrimson Powder
Wheel TypeMetal
Wheel Color/FinishCrimson Red
Bearing TypePrecision Sealed Ball
Wheel Material @ TreadMetal
Shipping Weight (lbs.)22
3D view optionyes
Caster Rig TypeIntegral Forged Kingpin
NoteThe four-position swivel lock (-4SL) and swivel seals (-SS) cannot be ordered together on this specific caster.
Wheel Core MaterialCast Iron
High Temp. Range (F)320
Low Temp. Range (F)-40
Relative CapacityHigh
Impact ResistanceLow
Abrasion ResistanceHigh
Chemical ResistantMedium
Moisture ResistanceHigh
Cushioning (Resilience)Low
Relative CostLow
Replacement WheelW-820-MB-1/2
Country of OriginUSA
Warranty3 Years (manufacturer)
Swivel or RigidSwivel
