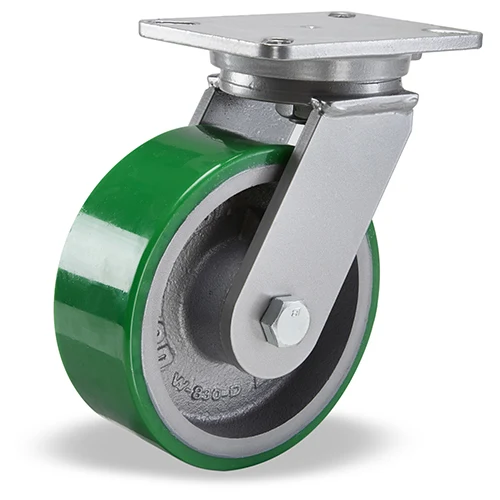

Hamilton S-CH-83DB Champion Swivel Caster, 8" x 3" Polyurethane

Hamilton Caster Item #S-CH-83DB · MFR #S-CH-83DB
Quick Answer: The Hamilton S-CH-83DB is a swivel Champion series caster with a 8" x 3" Duralast® Polyurethane wheel rated 2,500 lb, priced at $221.28. Made in USA with a 3-year warranty; ships in 24–48 hours from the factory.
  • Hamilton Champion swivel caster with 8" x 3" Duralast® Polyurethane wheel, precision sealed ball, 2,500 lb capacity.
  • Made in USA, 3-year warranty.
Condition
New
🚚 Factory-Direct Shipping 🏷️ Volume Pricing Available 🛠️ Expert Support: (847) 278-2311 Sales & expertise backed by Premier Handling Solutions, Inc.

Product Details

The Hamilton S-CH-83DB is a swivel top-plate caster from the forged-steel Champion series — a heavier plate and thicker legs step capacity up for demanding factory service. It runs a 8" x 3" Duralast® Polyurethane wheel on precision sealed ball bearings and carries a dynamic rating of 2,500 lb per caster. Made in the USA by Hamilton Caster, backed by a 3-year manufacturer warranty, and it typically ships in 24–48 hours from the factory.

Key features

  • 2,500 lb dynamic capacity per caster (at walking speed)
  • 8" x 3" Duralast® Polyurethane wheel — precision sealed ball
  • Kingpin swivel section for full maneuverability
  • Forged/heavy-gauge steel rig, Platinum Powder finish
  • 5 1/4 x 7 1/4" top plate, bolt pattern 3 3/8 x 5 1/4"
  • 10.5" overall height
  • Field-replaceable wheel (replacement part W-830-DB-3/4)
  • Made in USA — 3-year Hamilton manufacturer warranty

Options & add-ons

  • Four-Position Swivel Lock
  • Ergo Four-Position Swivel Lock
  • Ergonomic Contact Brake
  • ToeGuard
  • ToeGuard w/ Brush
  • ToeGuard w/ Ergo Contact Brake
  • ToeGuard w/ Ergo Brake & Brush
  • ToeGuard w/ Contact Brake
  • ToeGuard w/ Contact Brake & Brush
  • Heavy Duty Contact Brake

Brakes, toe guards, and other add-ons are quoted with your order — tell us your configuration and we’ll spec it out.

Specifications

Item NumberS-CH-83DB
Manufacturer Part #S-CH-83DB
BrandHamilton Caster
Swivel or Rigid casterSwivel
Load Capacity (lbs.) @ 3 mph2500
Wheel Diameter (in.)8
Wheel Face (in.)3
Overall Height (in.)10.5
Swivel Offset (in.)2.5
Mounting Plate (in.)5 1/4 x 7 1/4
Bolt Hole 1 (in.)3 3/8 x 5 1/4
Bolt Hole 2 (in.)4 1/8 x 6 1/8
Mounting Bolt (in.)0.5
Caster Color/FinishPlatinum Powder
Wheel TypeDuralast®
Wheel Color/FinishGreen Poly on Gray Center
Wheel Material @ TreadPolyurethane
Shipping Weight (lbs.)36
3D view optionyes
Caster Rig TypeIntegral Forged Kingpin
NoteThe four-position swivel lock (-4SL) and swivel seals (-SS) cannot be ordered together on this specific caster.
Mounting Plate Length (in.)7.25
Mounting Plate Width (in.)5.25
Wheel Core MaterialCast Iron
High Temp. Range (F)160°F
Low Temp. Range (F)-5°F
Relative CapacityHigh
Impact ResistanceMedium
Abrasion ResistanceHigh
Chemical ResistantMedium
Moisture ResistanceMedium
Cushioning (Resilience)Medium
Relative CostMedium
Bearing TypePrecision Sealed Ball
Replacement WheelW-830-DB-3/4
Country of OriginUSA
Warranty3 Years (manufacturer)
Swivel or RigidSwivel
