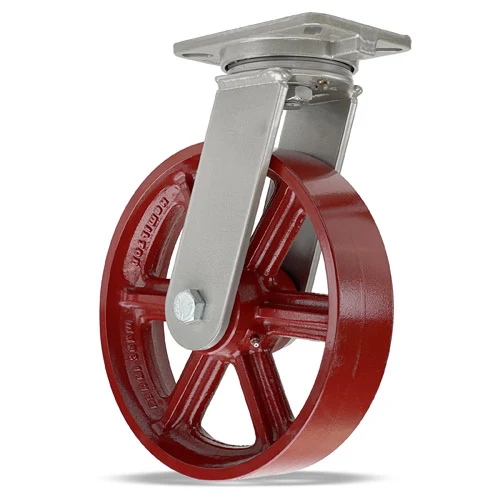

Hamilton S-CH-12MH Champion Swivel Caster, 12" x 3" Cast Iron

The Hamilton S-CH-12MH is a swivel top-plate caster from the forged-steel Champion series — a heavier plate and thicker legs step capacity up for demanding factory service. It runs a 12" x 3" Metal Cast Iron wheel on roller bearings and carries a dynamic rating of 2,600 lb per caster. Made in the USA by Hamilton Caster, backed by a 3-year manufacturer warranty, and it typically ships in 24–48 hours from the factory.

Key features

• 2,600 lb dynamic capacity per caster (at walking speed)
• 12" x 3" Metal Cast Iron wheel — roller
• Kingpin swivel section for full maneuverability
• Forged/heavy-gauge steel rig, Dark Grey finish
• 5 1/4 x 7 1/4" top plate
• 15.5" overall height
• Made in USA — 3-year Hamilton manufacturer warranty

Options & add-ons

• Four-Position Swivel Lock
• Ergo Four-Position Swivel Lock
• Ergonomic Contact Brake
• Rap-A-Round Foot Brake
• Heavy Duty Contact Brake

Brakes, toe guards, and other add-ons are quoted with your order — tell us your configuration and we’ll spec it out.
