Manufactured by Vestil

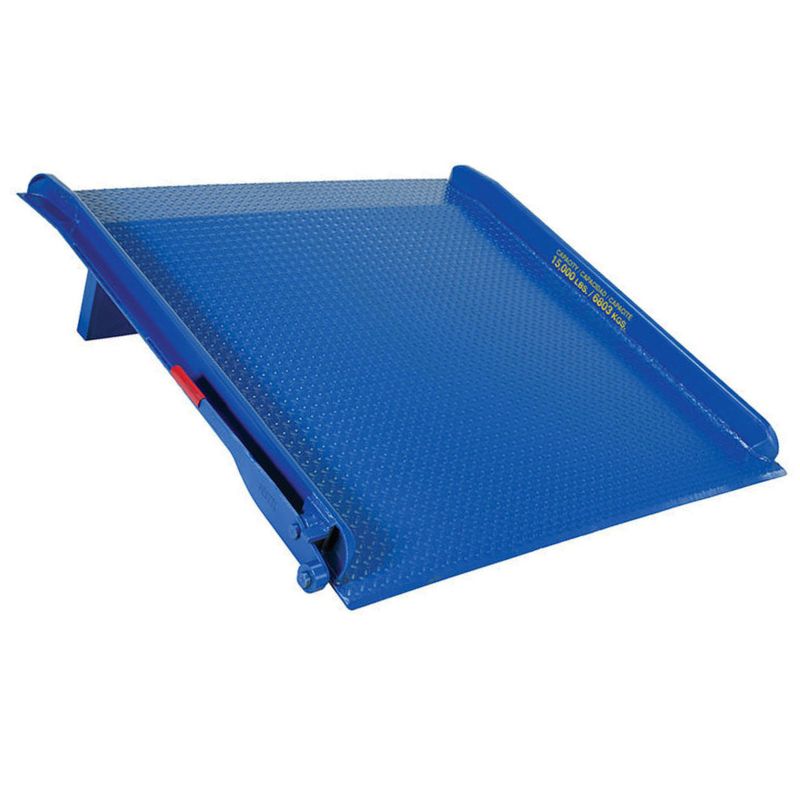

Vestil TS-15-6648 Steel Truck Dock Board

Vestil TS-15-6648 Steel Truck Dock Board is constructed of high strength (55,000 psi) steel for long life. Deck is diamond plated for safe, efficient use. Locking legs minimize ramp movement and are uneven to allow the dock board to sit canted for easier floor pickup by fork trucks when not in use. Standard with lever lift for quick portability with fork truck. Legs are located 12″ from the edge of the dock board. Manufactured in compliance with OSHA. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops.

SKU: TS-15-6648 Categories: , Download PDF

Slimcd Payment Icon Image

Product Specifications

Weight 461 lbs
Shipping Dimensions 47.8125 × 68.5625 × 13.8125 in
Uniform Capacity Lb

15000

Steel strength psi

55000

Bend degree

11

Deck thickness in

3/8

Osha

1910.30(a)

Ansi

MH 30.2

Usable width in

61-1/2

Brand

Vestil

Vestil is a trusted manufacturer of material handling and industrial equipment, offering a wide range of solutions, including lift tables, dock equipment, carts, and storage products. Their durable and innovative designs help businesses improve efficiency, safety, and workplace productivity.

Vestil TS-15-6648 Steel Truck Dock Board is constructed of high strength (55,000 psi) steel for long life. Deck is diamond plated for safe, efficient use. Locking legs minimize ramp movement and are uneven to allow the dock board to sit canted for easier floor pickup by fork trucks when not in use. Standard with lever lift for quick portability with fork truck. Legs are located 12″ from the edge of the dock board. Manufactured in compliance with OSHA. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops.

  • Manufactured from high-strength steel tread plate for maximum durability
  • Heavy-duty steel curbs are welded in place for maximum strength
  • Includes patented lever lift for easy fork truck positioning
  • Smooth transition provided by beveled entrance and exit
